OLYMPIC EQUIPMENT

Olympic FRSL-78 / Ultra-Thin Full-Rise Scissor Lift / 7,800 Lb. Capacity

Shipping and delivery fees are billed separately and will be calculated based on shipping address. Please contact us for shipping estimate. Professional installation is not included.
$5,531.00
$7,374.00 Sale $5,531.00
Product details
  • Vendor OLYMPIC EQUIPMENT
  • SKU FRSL-78
Description

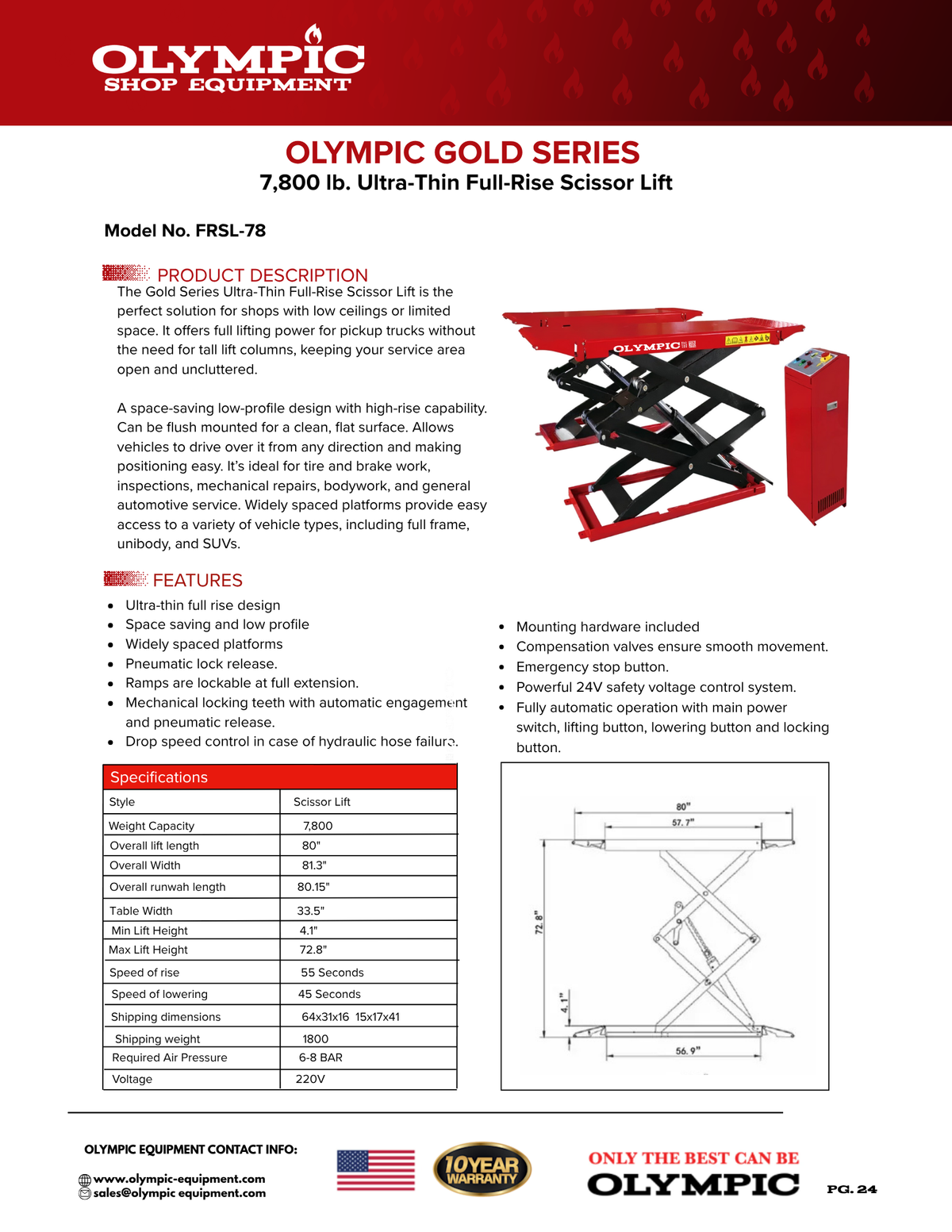

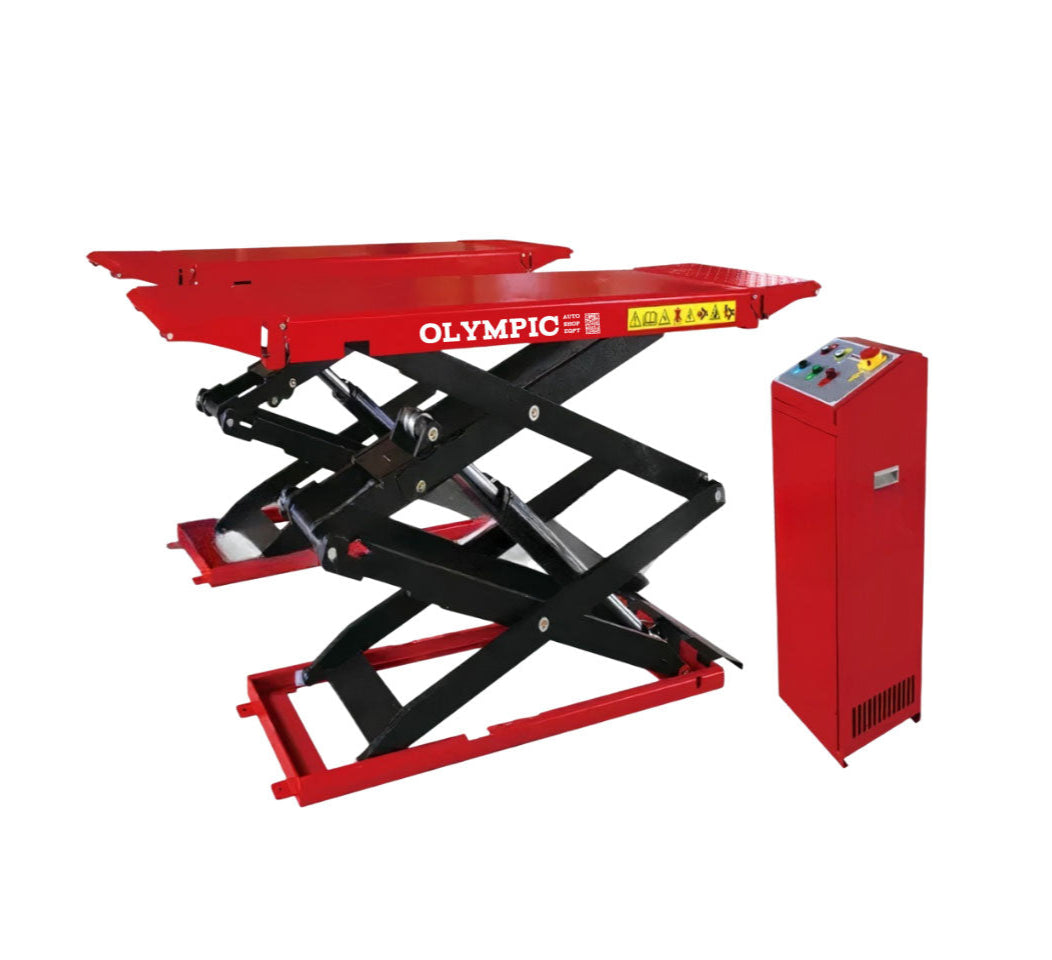

Olympic FRSL-78 / 7,800 lb. Ultra-Thin Full-Rise Scissor Lift

Full-rise scissor lift designed for shops with height restrictions.
With a 7,800 lb. capacity and a slim 4.1″ profile, this space-saving lift delivers a 72.8″ rise — enough to comfortably handle cars, trucks, and SUVs. It can also be flush-mounted for a clean, drive-over surface.
Capacity: 7,800 lbs | Max Lift Height: 72.8″ | Overall Width: 81.3″

Key Features

  • Olympic 7-Year Warranty
  • High-quality Q235 spec structural steel
  • Pneumatic lock release
  • Ramps lock at full extension
  • Mechanical locking teeth with automatic engagement & pneumatic release
  • Drop speed control prevents hydraulic hose failure risks
  • Compensation valves ensure smooth movement
  • Emergency stop button
  • 24V safety voltage control system
  • Fully automatic operation with lift/lower/lock controls
  • Durable hot powder-coated finish
  • Flush-mount option for a clean drive-over surface
  • Powerful 220V, 2.2KW, 3HP, 1PH hydraulic power unit
  • Certified & tested at 150% of rated capacity

Specifications

Style Scissor Lift
Weight Capacity 7,800 lbs
Overall Lift Length 80″
Overall Width 81.3″
Minimum Lift Height 4.1″
Maximum Lift Height 72.8″
Speed of Rise 55 seconds
Speed of Lowering 45 seconds
Table Width 33.5″
Required Air Pressure 6–8 BAR

Why Choose an Olympic Lift?

It’s tough — described as bulletproof! When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value. Your Olympic Lift may very well be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity.
