OLYMPIC EQUIPMENT

Olympic 4PHDXL-12 / Car & Truck Storage & Maintenance Lift / 12,000 Lb. Capacity

Shipping and delivery fees are billed separately and will be calculated based on shipping address. Please contact us for shipping estimate. Professional installation is not included.
$6,468.00
$8,624.00 Sale $6,468.00
Product details
  • Vendor OLYMPIC EQUIPMENT
  • SKU 4PHDXL-12
Description

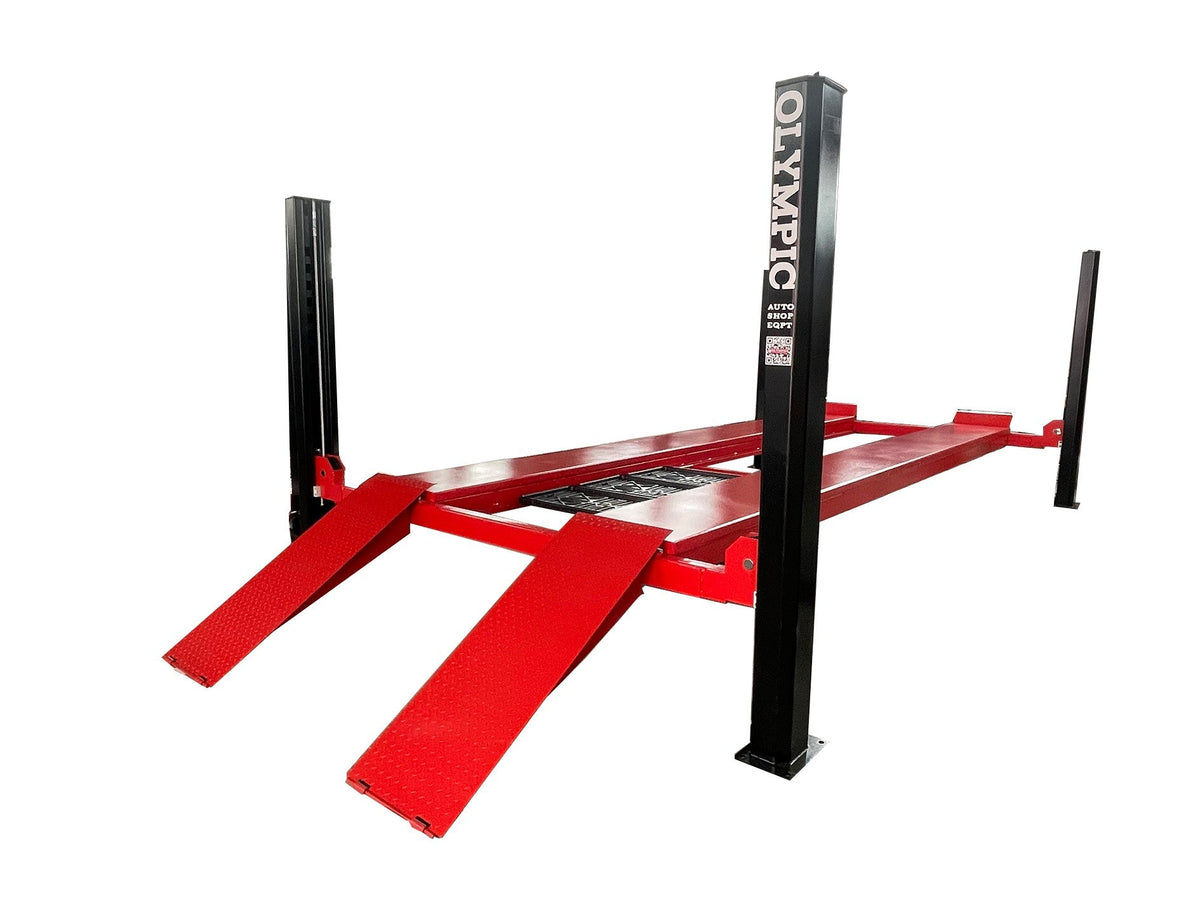

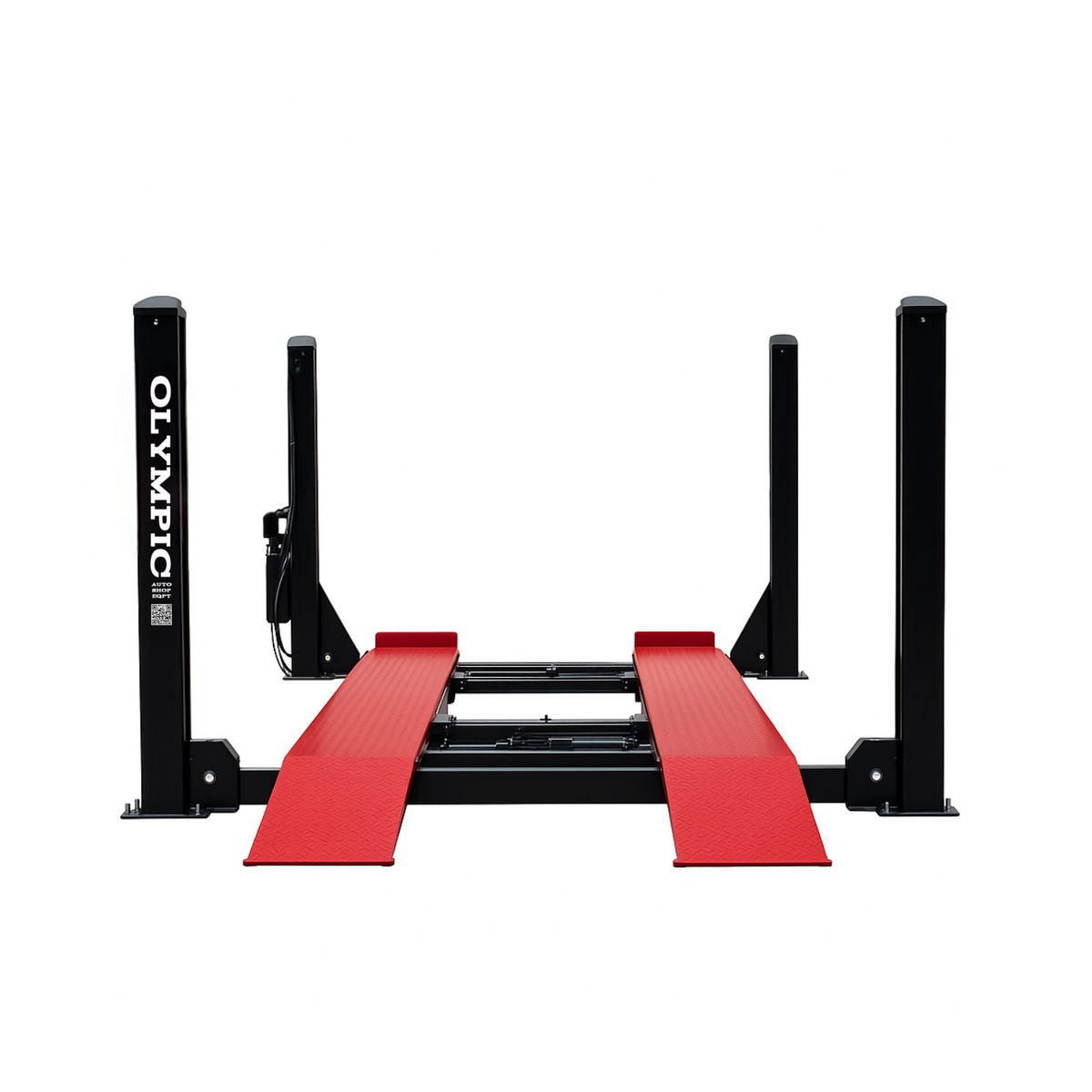

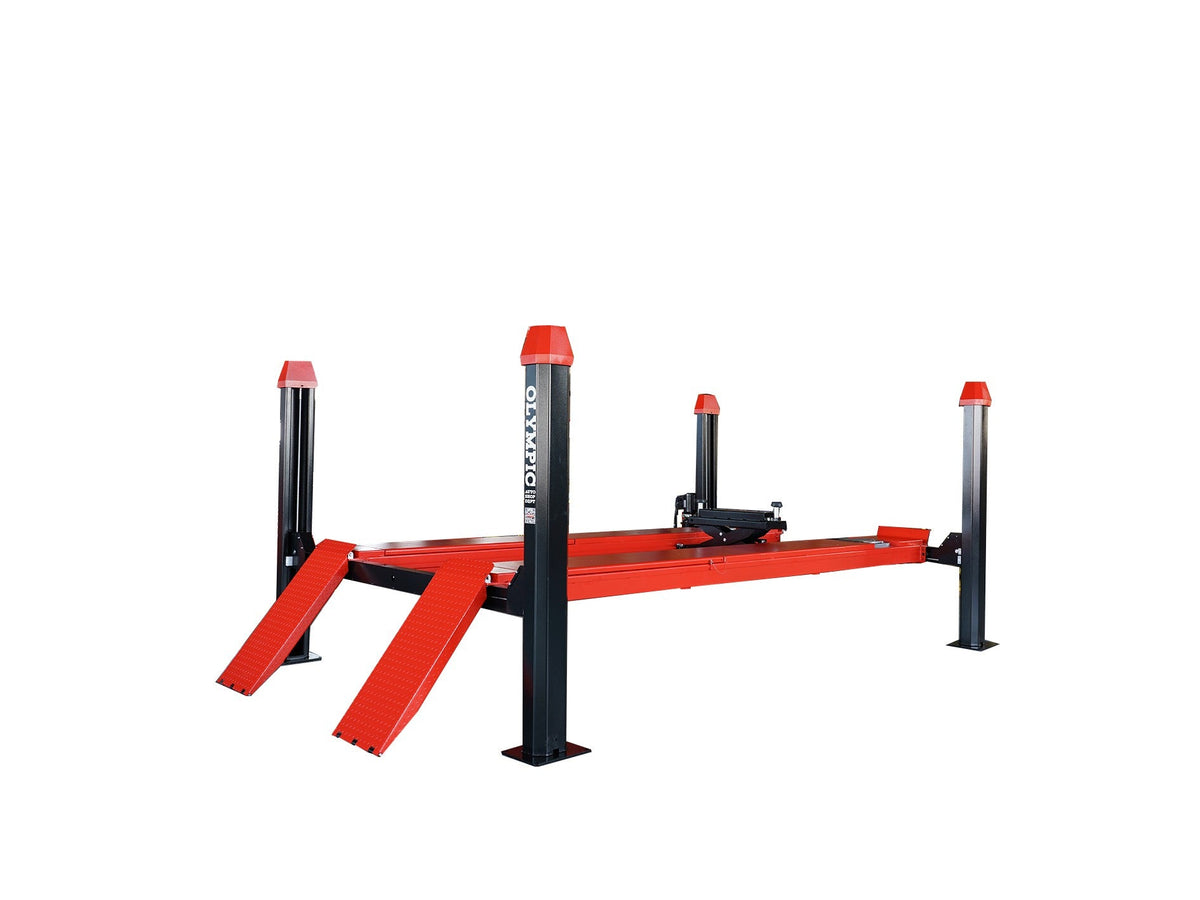

Olympic 4PHDXL-12 / 12,000 lb. Storage & Maintenance Lift

The bulletproof beast built for heavy-duty storage and service.
With a 12,000 lb. capacity, extra-wide runways, and Italian-engineered hydraulic components, this lift is perfect for trucks, vans, and low-clearance cars. Includes 220V power unit for reliable, maintenance-free operation.
Capacity: 12,000 lbs. | Max. Lift Height: 70.9″ | Runway Width: 21.6″

Key Features

  • Olympic 10-Year Warranty
  • High-quality Q235 Steel
  • Max lift height: 70.9″
  • Manual lock release system
  • 21.6″ wide runways
  • Cable-driven lifting system
  • Adjustable lock system — locks at any height
  • Cable anti-failure safety system
  • Heavy-duty cable sheaves & ladder lock system
  • Aircraft cables rated at 16,000 lbs.
  • Italian oil seals & components
  • Durable powder-coated finish
  • 220V 2.2KW, 1Ph power unit

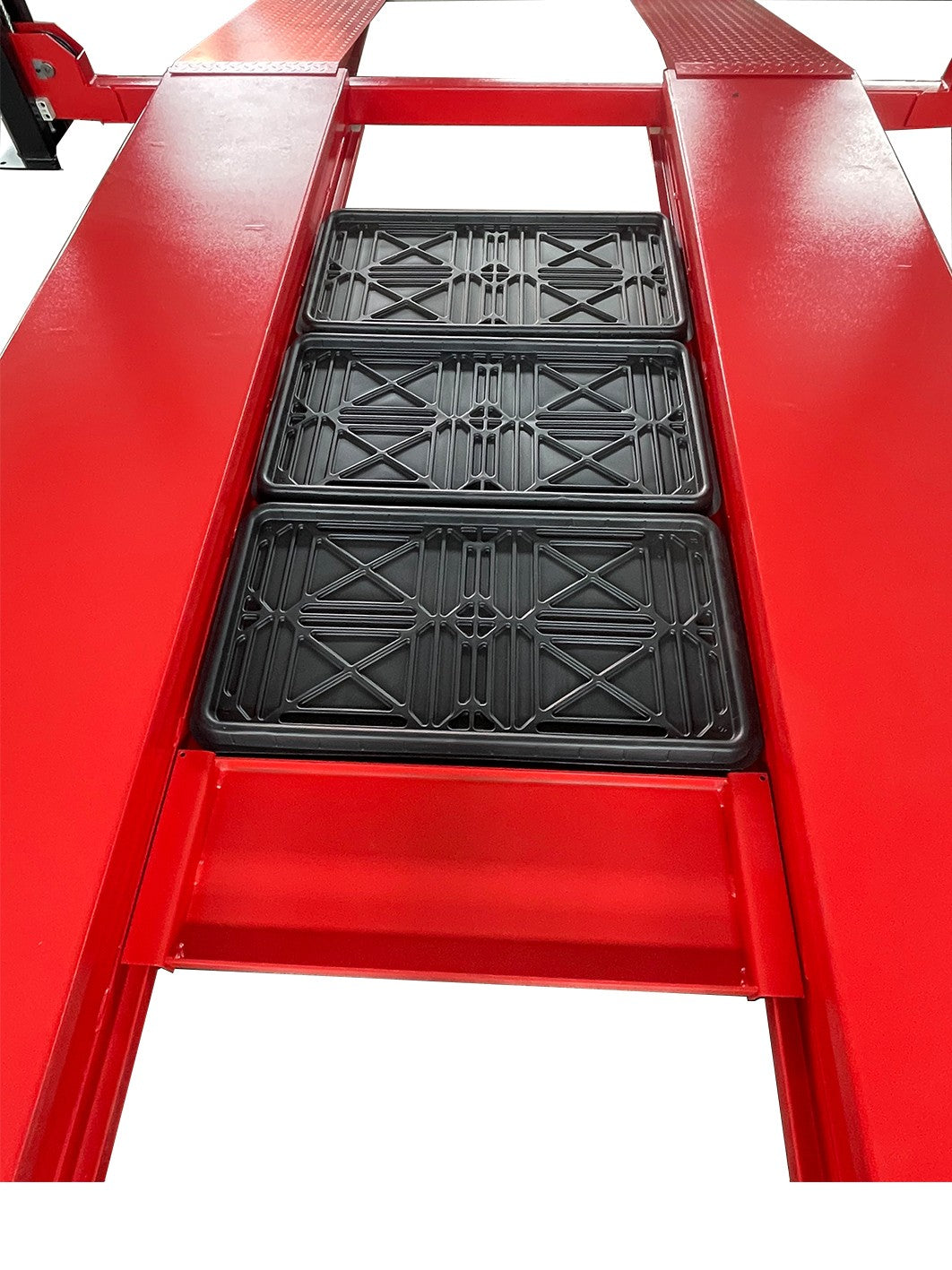

  • Optional 6,000 Lb. Bridge Jacks (Part No. FBCJ-6)
  • Certified & tested at 150% of rated capacity

Operating & Power Requirements

  • Power requirement: 220V 60Hz 2.2KW or 3KW 1-phase
  • Operating temperature: 5°C to 40°C
  • Ambient humidity: 30% to 95% (at 40°C)
  • Installation altitude: 5,500 feet/1675m above sea level
  • Storage/transport temperature: -25°C to 55°C

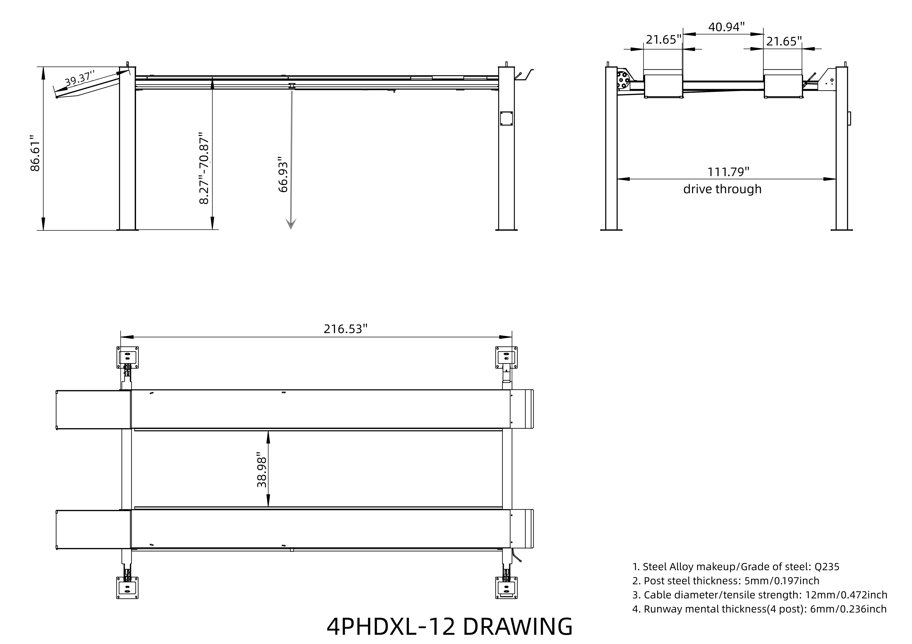

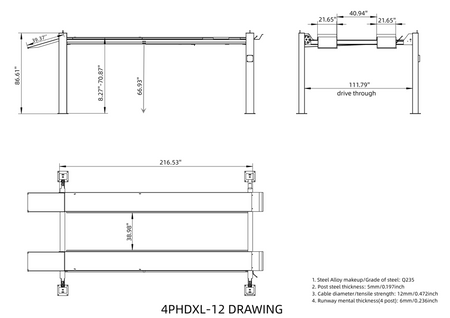

Specifications

Load Capacity 12,000 lbs.
Overall Height 87.40″
Overall Width 132.40″
Width Between Posts 111.79″
Runway Width 21.65″
Width Between Tracks 38.98″
Lifting Height 70.86″
Overall Length (without ramps) 216.53″
Overall Length (WITH ramps) 255.9"
Runway Length 196.85″
Shipping Weight 3,880 lbs.
Power Unit 220V, 3KW, 4HP, 1Ph

Why Choose an Olympic Lift?

When you buy an Olympic lift, you can expect premium product.
