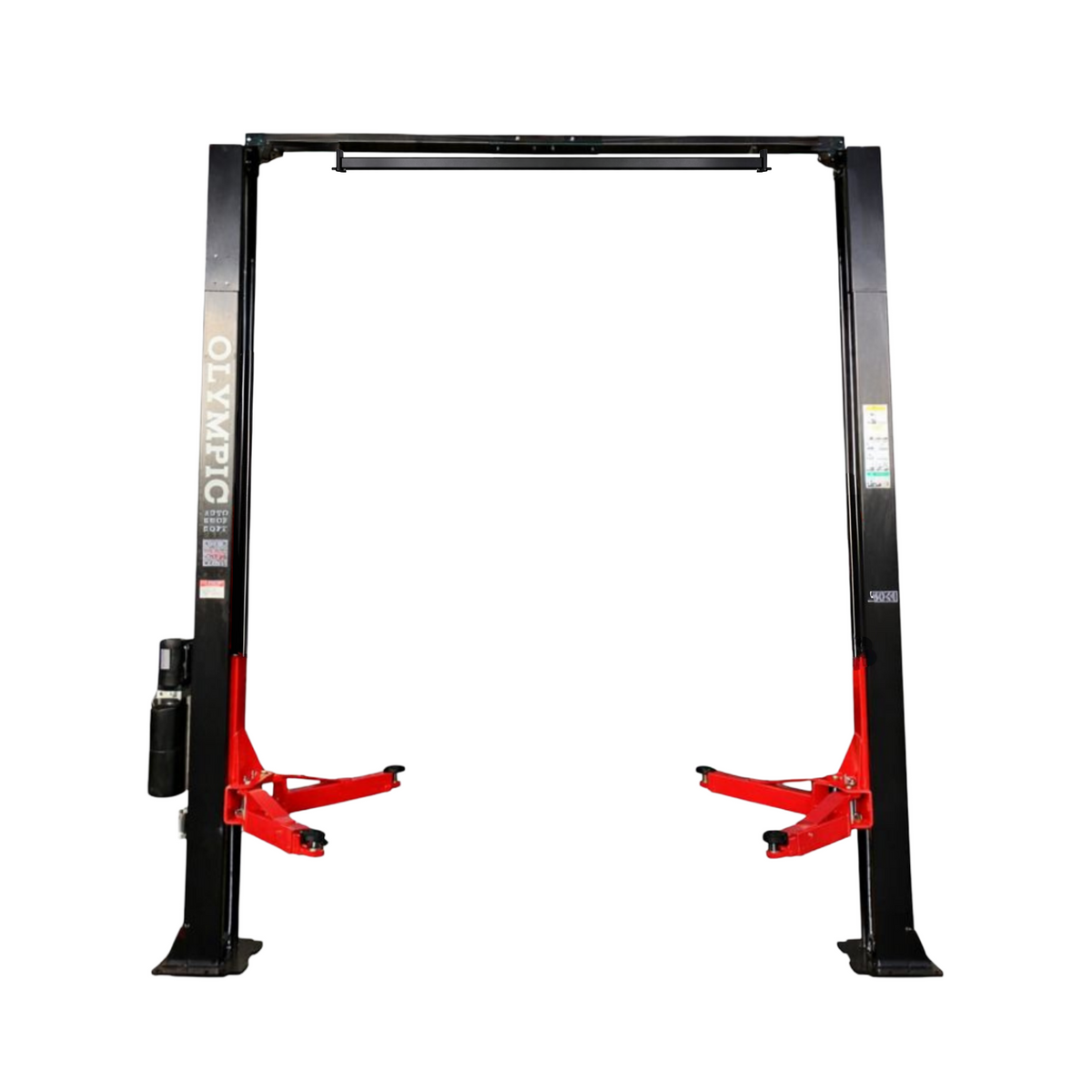

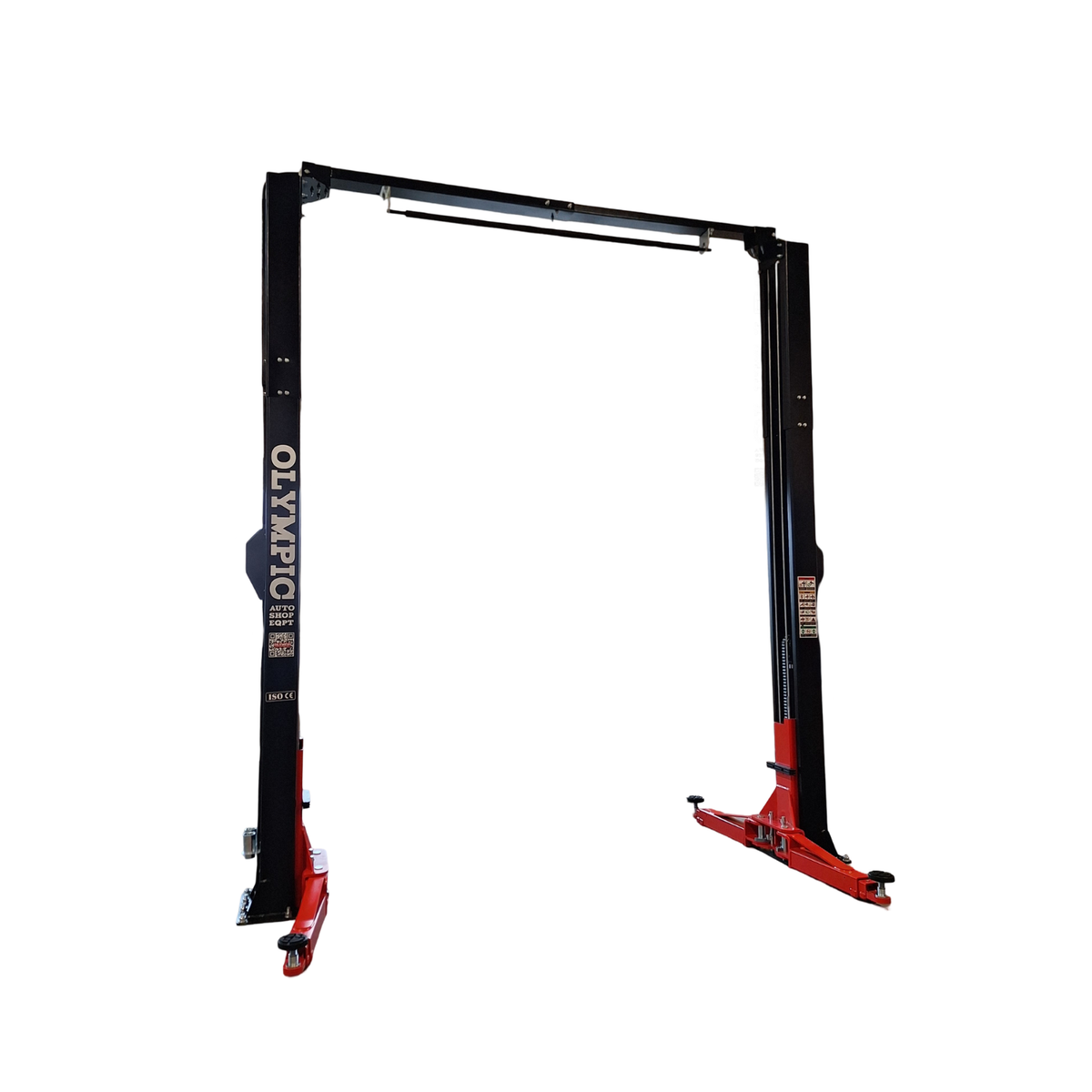

The Olympic 2PCFHD-12 is a heavy-duty 12,000 lb 2-post clear floor car lift designed for demanding professional automotive service environments. Its extra-wide and extra-tall configuration provides the space needed to accommodate large, wide, and tall vehicles, including dual-wheel trucks.
Built with high-quality Q235 structural steel and a rugged commercial-grade design, this lift provides reliable vehicle lifting performance for busy repair shops, service centers, and professional garages. The clear floor configuration, long-reach three-stage arms, adjustable foot adapters, and single-point lock release make it a practical solution for servicing a wide range of vehicles.
With a 174-inch overall height, 156-inch overall width, 134-inch width between posts, and a 12,000 lb lifting capacity, the Olympic 2PCFHD-12 is built for serious automotive lifting applications.
The Olympic 2PCFHD-12 provides the strength and working space required for servicing larger vehicles. Its extra-wide configuration and long-reach arms help accommodate trucks and other large service vehicles, while the clear floor design keeps the workspace beneath the vehicle open for easier access.
The heavy-duty hydraulic system and synchronized lifting operation support efficient vehicle servicing. Adjustable three-stage foot adapters and included truck adapters provide additional flexibility for different vehicle lifting points.
With a maximum lift height of 70.87 inches and a 12,000 lb capacity, this professional automotive lift is designed to support demanding repair and maintenance work.

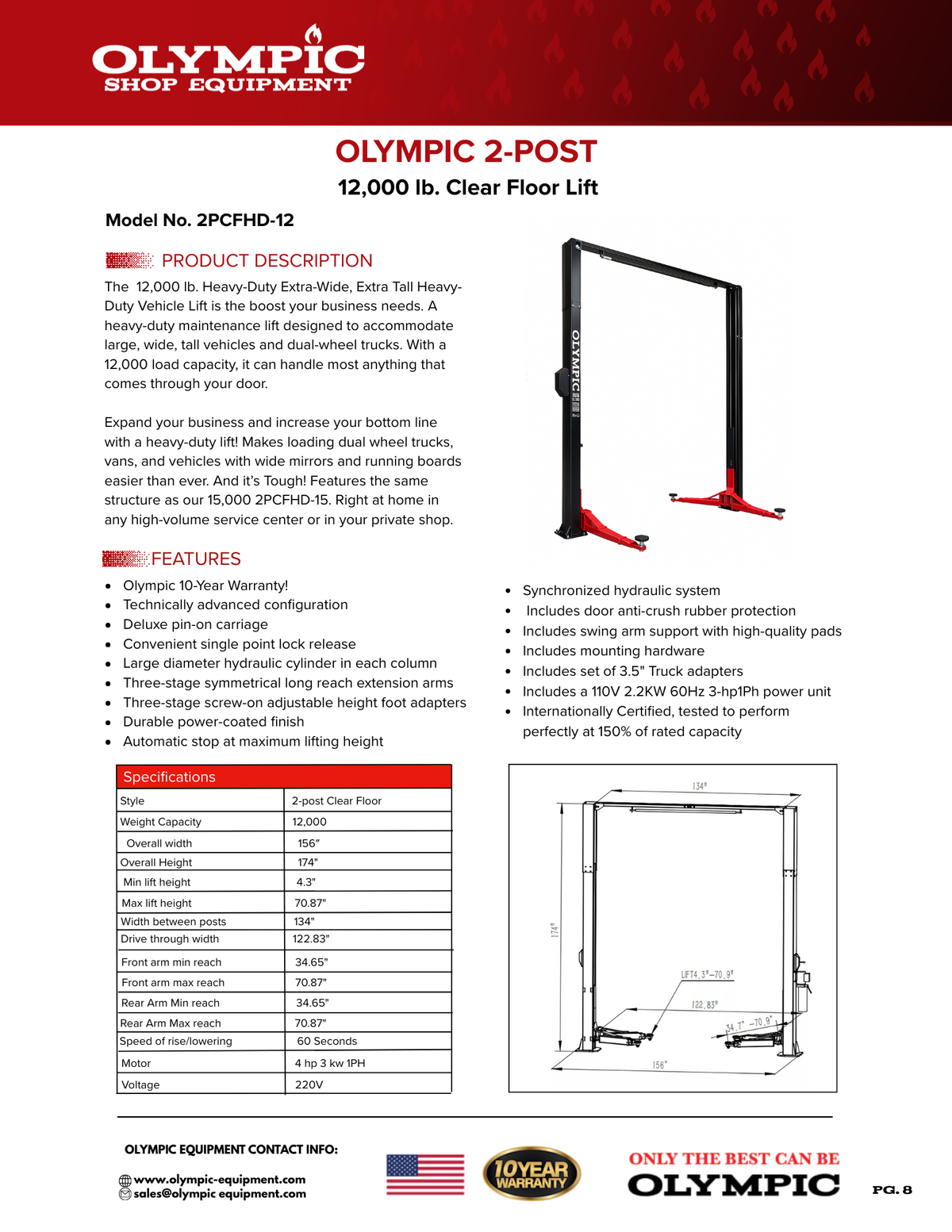

Style: 2-Post Clear Floor Lift
Capacity: 12,000 lbs

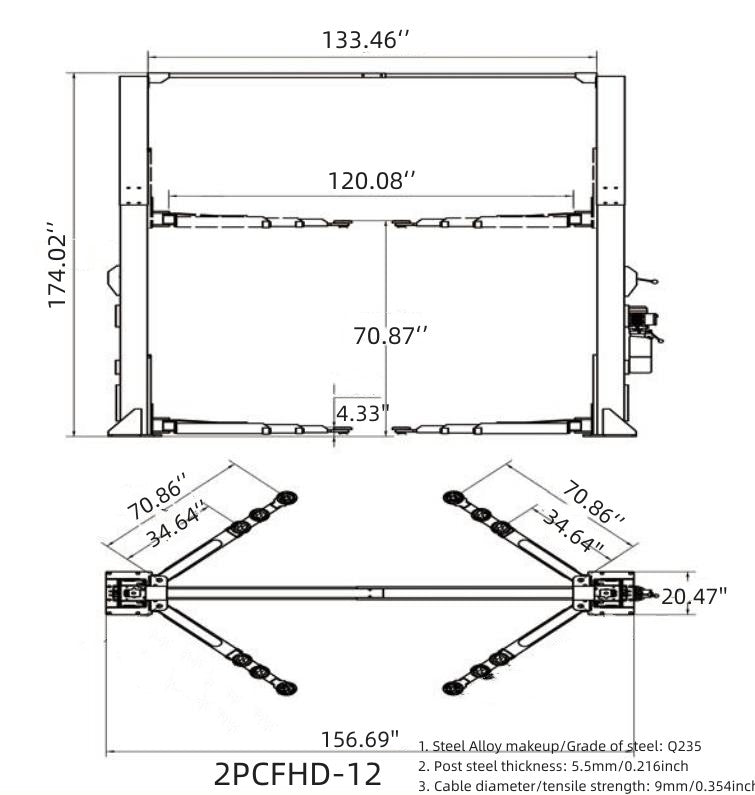

Overall Height: 174 inches
Overall Width: 156 inches
Width Between Posts: 134 inches
Minimum Lift Height: 4.3 inches
Maximum Lift Height: 70.87 inches
Front Arm Reach: 34.65–70.87 inches
Rear Arm Reach: 34.65–70.86 inches
Speed of Rise: 55 seconds
Speed of Lowering: 55 seconds
Voltage: 220V, 1-Phase
Recommended Power Unit: HPU2204, 3KW, 4HP, 1-Phase
Locking Positions: 12
Fits Under Ceiling Height: 14 feet 6 inches
The Olympic 2PCFHD-12 combines a 12,000 lb lifting capacity with an extra-wide, extra-tall clear floor design for demanding automotive service applications. Long-reach three-stage arms, adjustable foot adapters, large hydraulic cylinders, synchronized lifting, and included truck adapters provide the features needed for professional vehicle repair operations.
The lift is backed by Olympic's 10-Year Warranty and is certified and tested at 150% of its rated capacity.
Upgrade your professional garage or automotive service facility with the Olympic 2PCFHD-12 12,000 lb Heavy-Duty 2-Post Clear Floor Lift. Choose a rugged, extra-wide and extra-tall vehicle lifting solution built for demanding truck and automotive service applications.
