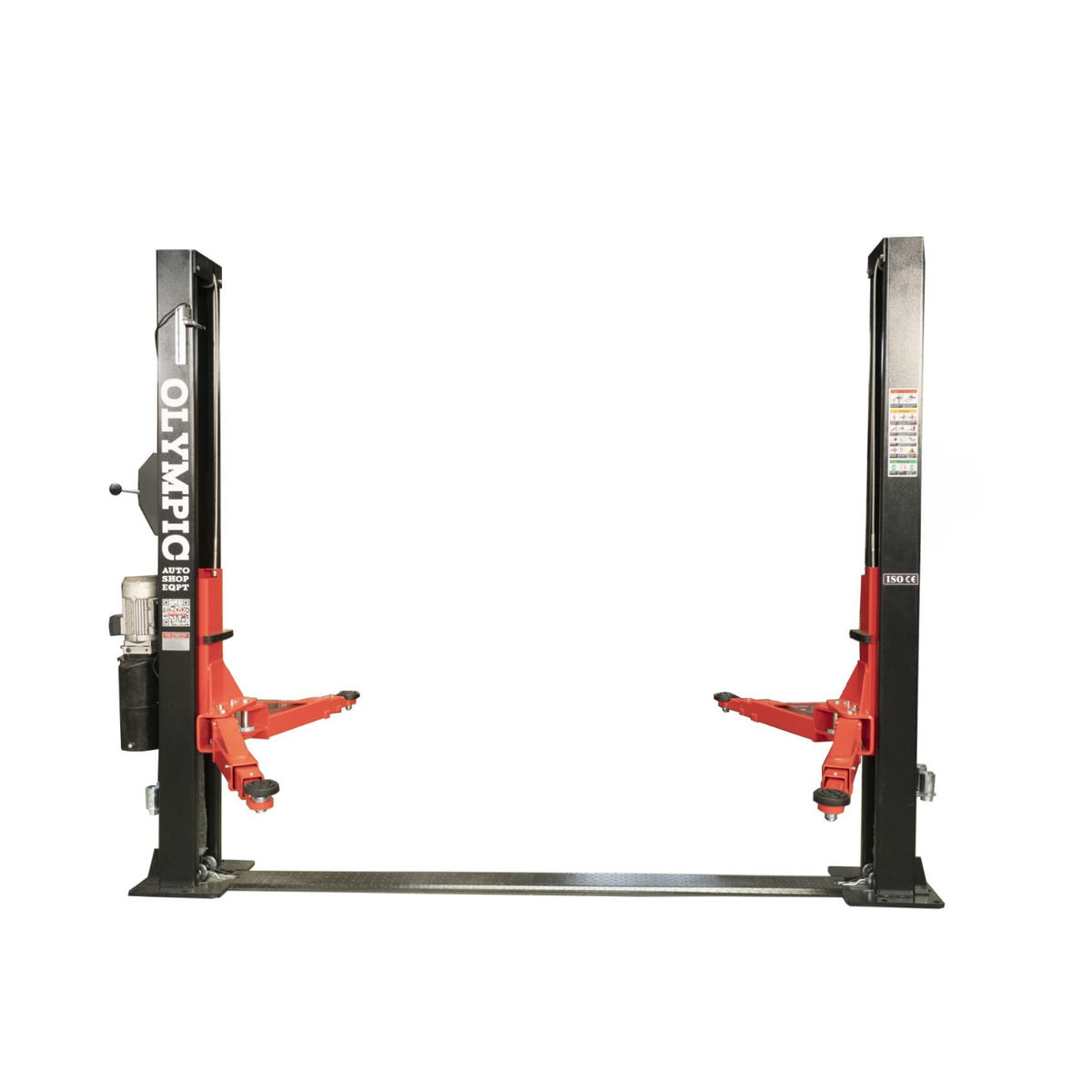

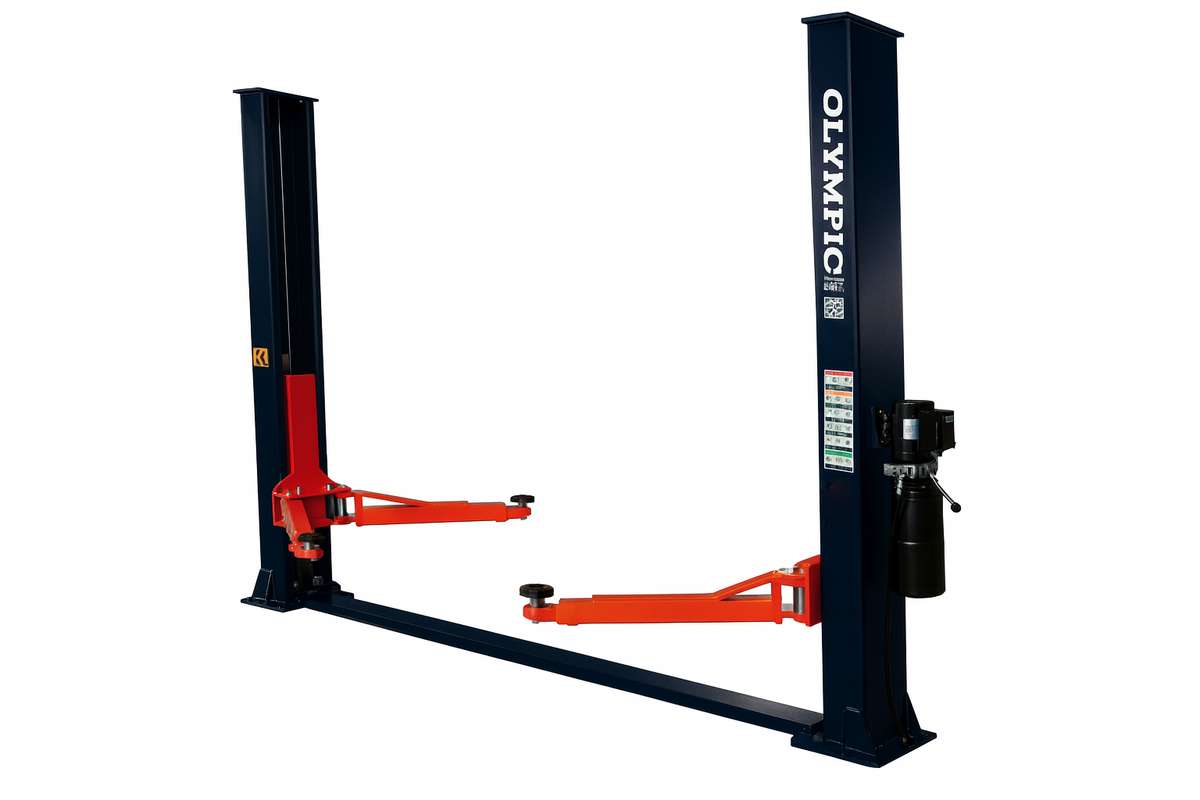

The Olympic 2PBPXW-10 is a 10,000 lb extra-wide 2-post base plate car lift built for professional automotive service, commercial garages, and demanding vehicle repair applications. Its extra-wide design provides a 104-inch drive-through width, making it well suited for larger vehicles, dual-wheel trucks, and service vehicles.
Designed for facilities with lower ceiling clearance, this base plate vehicle lift has an overall height of 110 inches and fits under a ceiling height of approximately 9 ft. 3 in. The lift combines heavy-duty Q235 structural steel, large-diameter hydraulic cylinders, three-stage symmetrical long-reach arms, and a synchronized hydraulic system for dependable professional use.
With a 10,000 lb lifting capacity, adjustable foot adapters, and included truck adapters, the Olympic 2PBPXW-10 provides a versatile lifting solution for automotive repair shops and commercial service facilities.
The extra-wide configuration gives automotive professionals additional drive-through clearance when servicing larger vehicles. With a 104-inch drive-through width and 10,000 lb capacity, this lift is designed to support a broad range of commercial automotive service applications.
The three-stage symmetrical long-reach arms provide flexible vehicle positioning, while the adjustable foot adapters help accommodate different lifting points. The included 3.5-inch truck adapters further support service work on compatible larger vehicles.
The base plate design and 110-inch overall height make this professional vehicle lift suitable for workshops and garages with lower ceiling clearance. Its synchronized hydraulic system and 15 locking positions provide controlled lifting and positioning during automotive maintenance and repair work.

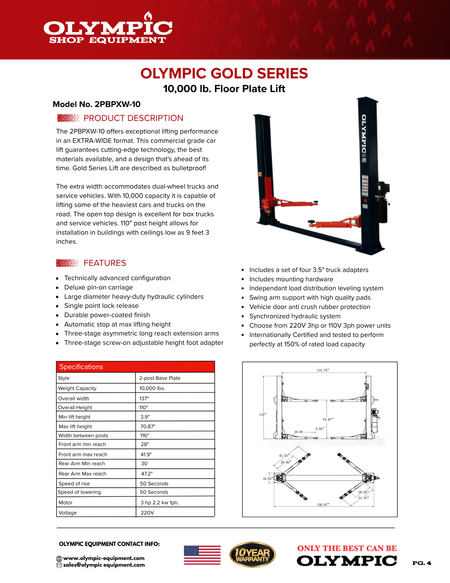

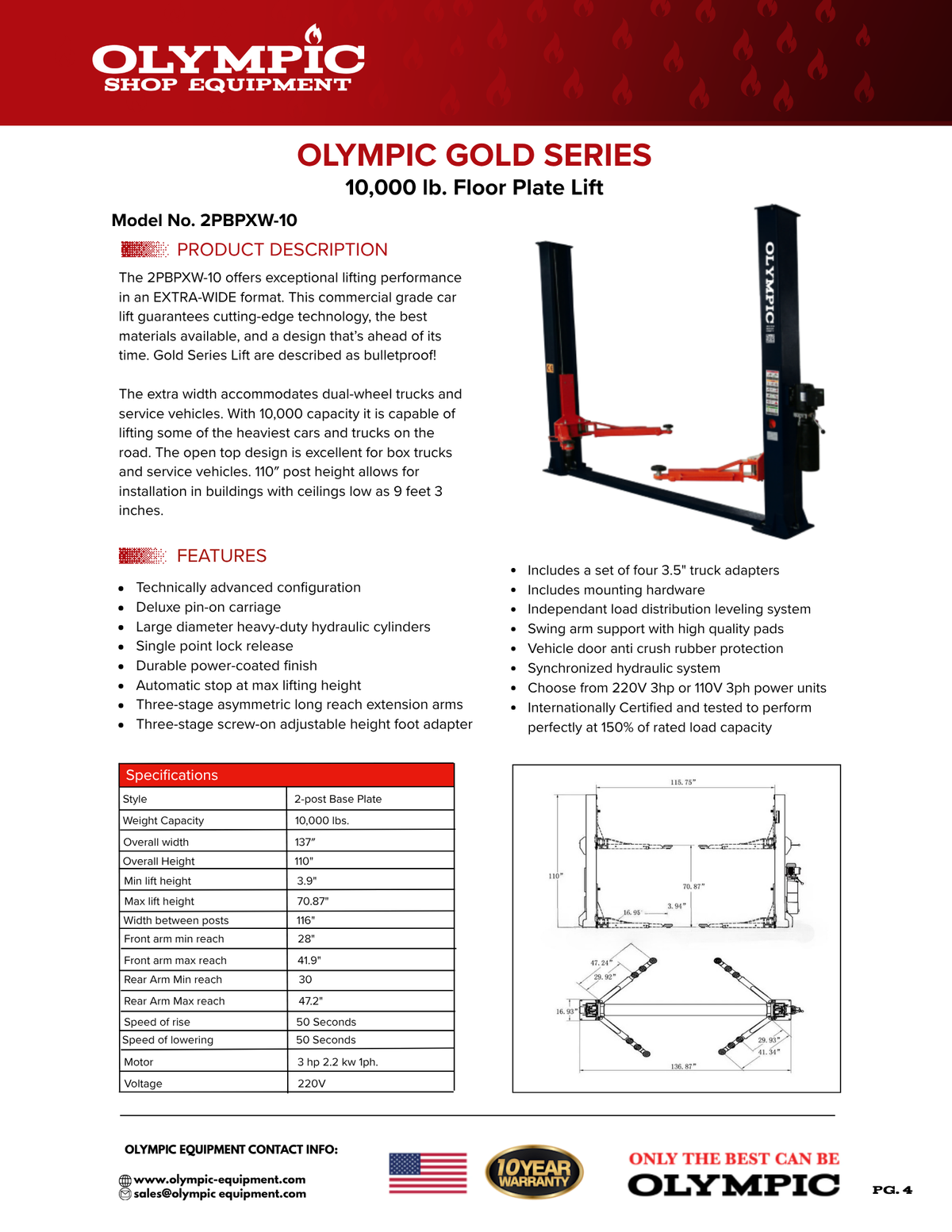

Model: Olympic 2PBPXW-10
Lift Style: Extra-Wide 2-Post Base Plate Lift
Lifting Capacity: 10,000 lbs
Overall Height: 110 inches
Overall Width: 137 inches
Drive-Through Width: 104 inches
Width Between Posts: 116 inches
Minimum Lift Height: 3.9 inches
Maximum Lift Height: 70.87 inches
Front Arm Reach: 28–41.9 inches
Rear Arm Reach: 30–47.2 inches
Arm Configuration: Three-stage symmetrical long-reach arms
Foot Adapters: Three-stage screw-on adjustable height adapters
Lock Release: Single-point lock release
Locking Positions: 15
Rise/Lowering Speed: 55 seconds
Power Unit: 110V, 2.2KW, 60Hz, 3HP, 1-phase included
220V Option: Available
Fits Under Ceiling Height: Approximately 9 ft. 3 in.
Included Accessories: Four 3.5-inch truck adapters and mounting hardware
Olympic Warranty: 10-Year Olympic Warranty
The Olympic 2PBPXW-10 combines a 10,000 lb lifting capacity with an extra-wide base plate design for professional automotive service. Its 104-inch drive-through width provides additional clearance for larger service vehicles, while the three-stage long-reach arms and adjustable foot adapters offer flexible vehicle positioning.
Built with heavy-duty structural steel, hydraulic cylinders in each column, synchronized lifting, and multiple locking positions, this commercial-grade 2-post vehicle lift is designed for demanding garage and workshop environments.
Upgrade your automotive service facility with the Olympic 2PBPXW-10 10,000 lb extra-wide 2-post base plate car lift. Built for professional garages, trucks, dual-wheel vehicles, and demanding automotive repair applications.
