Olympic 2PBP-10 / 2-Post Base Plate Car Lift / 10,000 Lb. Capacity

Shipping and delivery fees are billed separately and will be calculated based on shipping address. Please contact us for shipping estimate. Professional installation is not included.
Regular price $3,421.00
Regular price $4,561.00 Sale Sale price $3,421.00
Product details
  • Vendor OLYMPIC EQUIPMENT
  • SKU 2PBP-10

The Olympic 2PBP-10 10,000 lb 2-Post Base Plate Lift is a professional-grade hydraulic vehicle lift built for demanding garages, automotive repair shops, and vehicle service facilities. With a 10,000 lb lifting capacity, it provides substantial lifting capability for compatible cars, trucks, vans, SUVs, and other service vehicles.

The base plate 2-post configuration combines a practical footprint with clear access around the vehicle. Asymmetric long-reach arms and two-stage adjustable foot adapters provide flexibility when positioning vehicles for maintenance and repair.

KEY FEATURES

  • 10,000 lb lifting capacity
  • 2-post base plate configuration
  • Olympic 10-year warranty
  • High-quality Q235 structural steel
  • Asymmetric long-reach arms
  • Large-diameter heavy-duty hydraulic cylinders
  • Independent load-leveling system
  • Dual-point manual lock release
  • Synchronized hydraulic system
  • Two-stage adjustable foot adapters
  • Automatic stop at maximum lifting height
  • Durable powder-coated finish
  • Door anti-crush rubber protection
  • Swing arm supports with high-quality pads
  • Mounting hardware included
  • Four 3.5-inch truck adapters included
  • 220V, 60Hz, 2.2KW, 3HP power unit
  • Certified and tested at 150% of rated capacity

BENEFITS

The Olympic 2PBP-10 provides professional vehicle lifting capability for a broad range of automotive service applications. Its hydraulic system, long-reach asymmetric arms, adjustable foot adapters, and independent load leveling help provide practical flexibility during vehicle repair and maintenance.

The included truck adapters allow the lift to accommodate appropriate taller vehicles while maintaining its 10,000 lb rated capacity.

IDEAL FOR

  • Automotive repair shops
  • Professional mechanics
  • Independent garages
  • Commercial automotive service facilities
  • Vehicle maintenance businesses
  • General vehicle repair applications
  • Cars, trucks, vans, and SUVs within the rated capacity

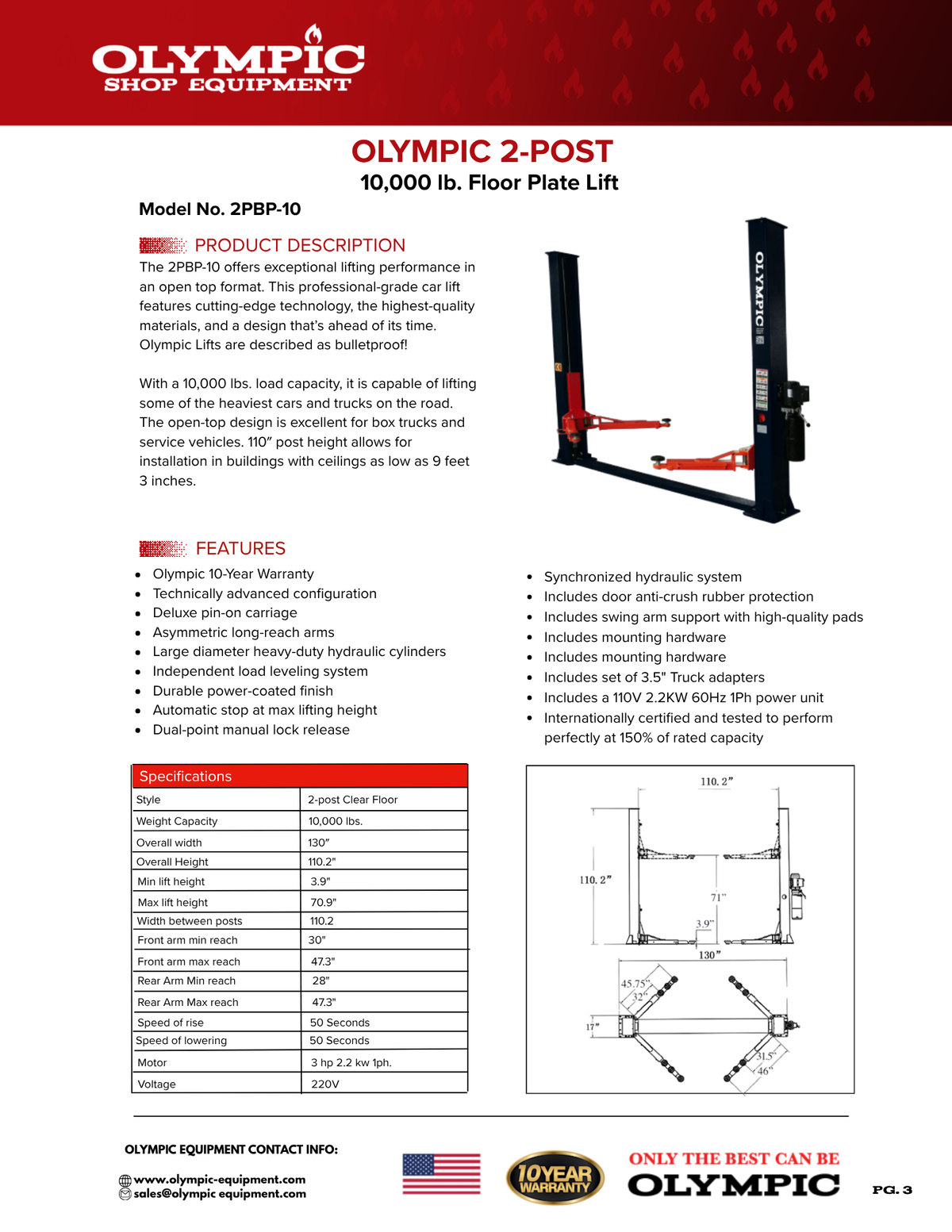

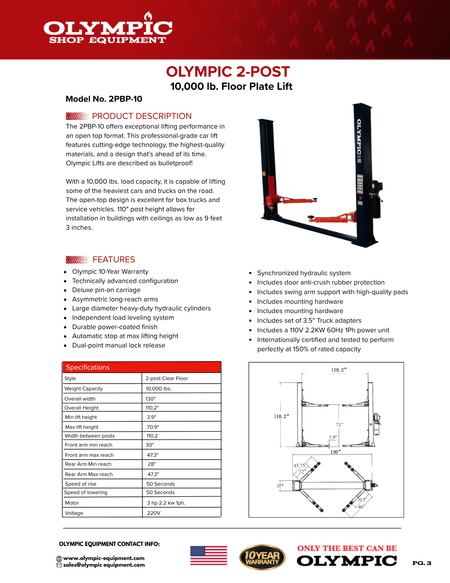

SPECIFICATIONS

  • Model: Olympic 2PBP-10
  • Lift Style: 2-Post Base Plate
  • Capacity: 10,000 lbs
  • Overall Height: 110.2 inches
  • Overall Width: 130 inches
  • Width Between Posts: 110.2 inches
  • Minimum Lift Height: 3.9 inches
  • Maximum Lift Height: 70.9 inches
  • Front Arm Reach: 30–47.3 inches
  • Rear Arm Reach: 28–47.3 inches
  • Rise/Lowering Speed: 55 seconds
  • Locking Positions: 15
  • Voltage: 220V
  • Power Unit: HPU2203, 3HP, 2.2KW, 1PH
  • Ceiling Height: 9 feet 3 inches
  • Truck Adapters: Four 3.5-inch adapters included
  • Olympic Warranty: 10 years

WHY CHOOSE THIS PRODUCT

The Olympic 2PBP-10 combines a 10,000 lb capacity, hydraulic lifting system, asymmetric long-reach arms, adjustable foot adapters, and heavy-duty structural steel construction. Designed for demanding garage and shop environments, it provides the lifting capability needed for professional automotive maintenance and repair.

Equip your shop with the Olympic 2PBP-10 10,000 lb 2-Post Base Plate Lift and add dependable vehicle lifting capability to your professional automotive service bay.
