CTEK PRO25S NA

SKU: 40-328
Regular price $449.99

Product details

  • SKU 40-328

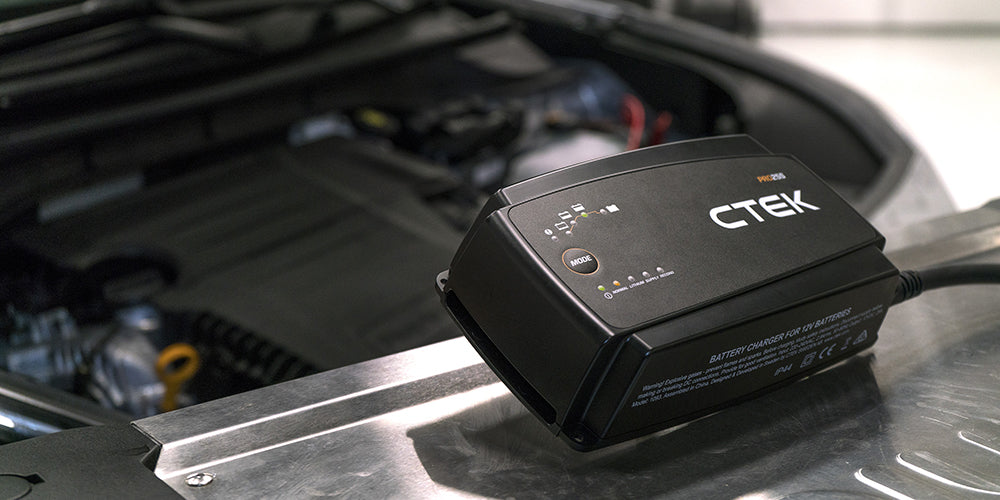

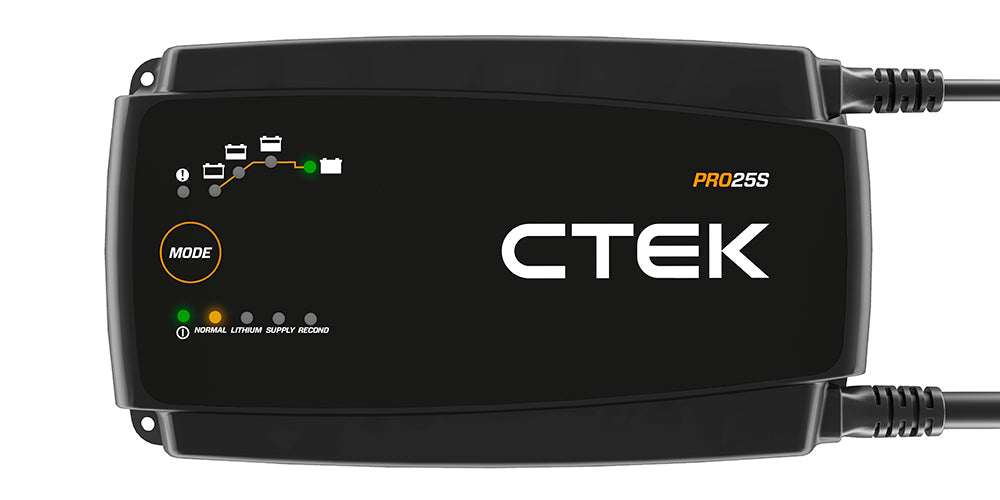

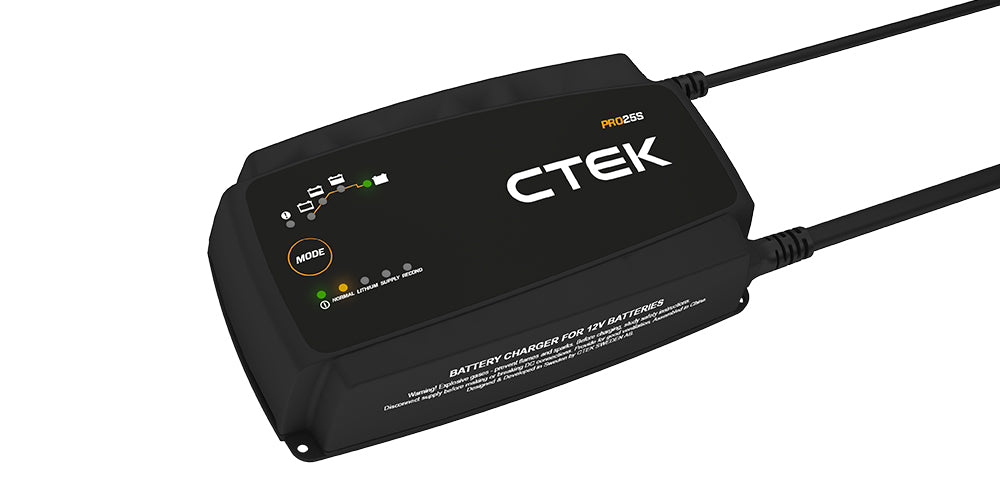

The PRO25S is an innovative, versatile and highly efficient 22A battery charger and power supply, designed around the needs of the automotive professional. Combining power & advanced technology with safety, portability and flexibility to work with any 12V vehicle battery including lithium*, the PRO25S is the perfect solution to professional battery charging, in the workshop or the showroom.

Description

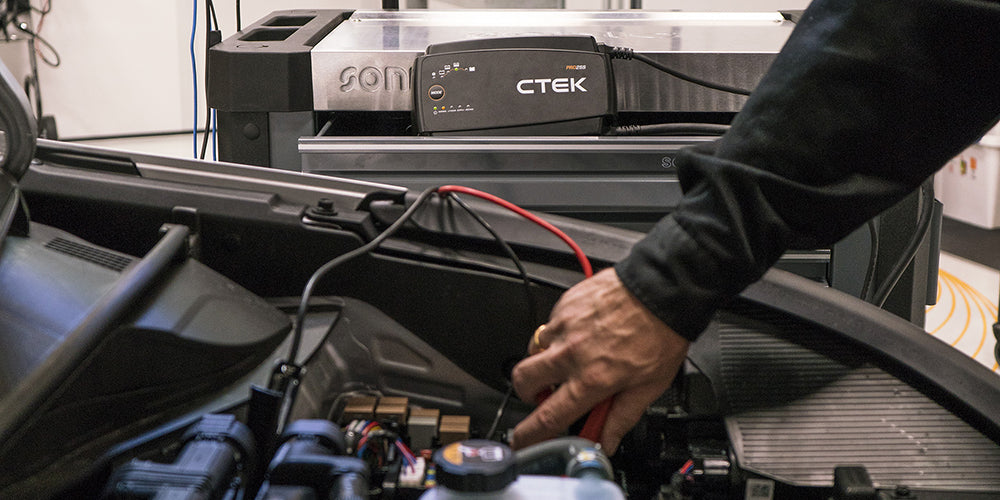

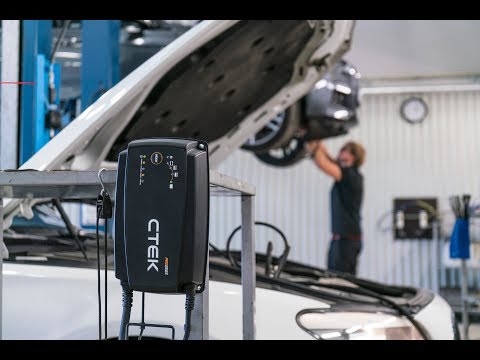

Advanced technology will ensure that a safe, fast charge is delivered to exactly meet the needs of the individual battery. The PRO25S has a dedicated leadacid battery reconditioning programme to restore battery life & recondition flat batteries. SUPPLY mode will support the battery during diagnostic or fault finding work. It has low voltage & current ripple, so it’s safe for the battery & the vehicle’s delicate electronic systems. Fully automatic & easy to use, it’s also very simple to connect, spark proof and reverse-polarity protected to protect the user & also the battery. The PRO25S is designed to ensure easy handling in both the workshop & the showroom. Whilst it’s lightweight & portable, the rugged, impact-resistant casing means it can also handle the toughest workshop environment. *) 12V lithium batteries (LiFePO4, Li-Fe, Li-iron, LFP)


Features

  • Battery types 12V: WET, EFB, MF, Ca/Ca, AGM, GEL, LiFePO4
  • Dedicated lithium (12V lithium batteries (LiFePO4, Li-Fe, Li-iron, LFP) mode
  • Compatible with batteries from 40 Ah to 500 Ah (30 Ah to 450 Ah lithium - LiFePO4, Li-Fe, Li-iron, LFP)
  • SUPPLY mode to support the battery during diagnostic or fault-finding work
  • Fully automatic and easy to use. Simple to connect, spark proof and reverse-polarity protected
  • Integrated safety features, so it’s safe for the battery & the vehicle
  • Built-in temperature sensor to achieve maximum charge levels
  • Dedicated lead-acid reconditioning program to restore battery life and recondition dead batteries
  • Input voltage is 110-120 VAC
  • Lightweight & highly portable
  • Tough & robust
  • 2-year warranty

Technical data

Charging category: AC charging
Input: 100-120 VAC, 50–60 Hz, 4.0 A
Output: 22 A, 12 V
Battery chemistry: Lead acid; Lithium-ion
Battery types: 12 V:; WET; MF; Ca/Ca; AGM; EFB; GEL; LiFePO₄
Battery capacity: 40–500 Ah, lead-acid battery types. 30–450 Ah, LiFePO₄.
Battery capacity CEC-400: 150-400 Ah
Back current drain*: Less than 2.3 Ah/month
Battery voltage: 12 V
Ambient operating temperature: -4 °F to +122 °F
Cooling: Fan
Start voltage: 2.0 V lead-acid battery types 8.0 V LiFePO₄
Ripple**: Less than 4 %
Temperature compensation: External charge voltage temperature compensation sensor
Degree of protection: IP44
Dimensions (L x W x H): 9.3 x 5.1 x 2.6 in
Cable area: 5.3 mm2
Net weight (unit with cables): 4.0 lbs
Gross weight (unit in box): 4.9 lbs

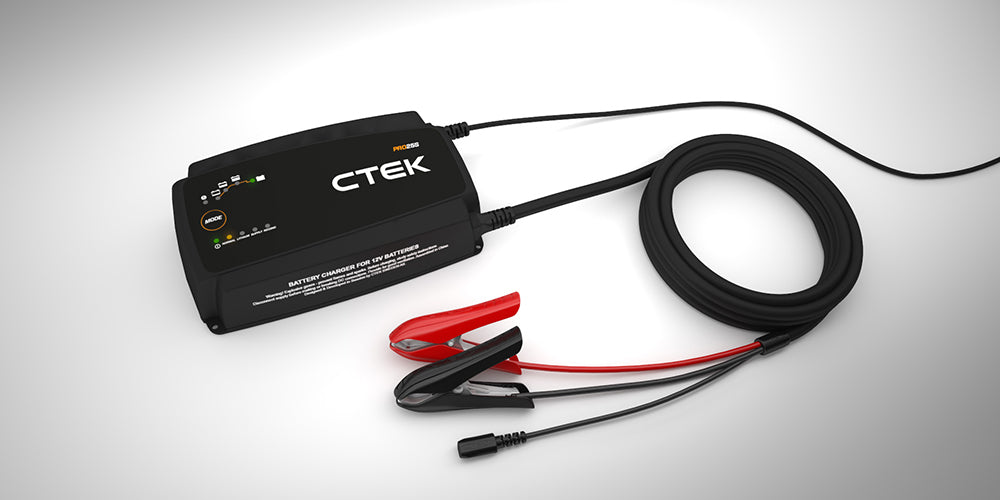

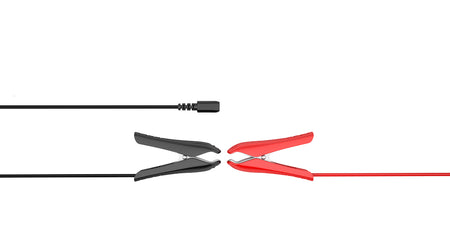

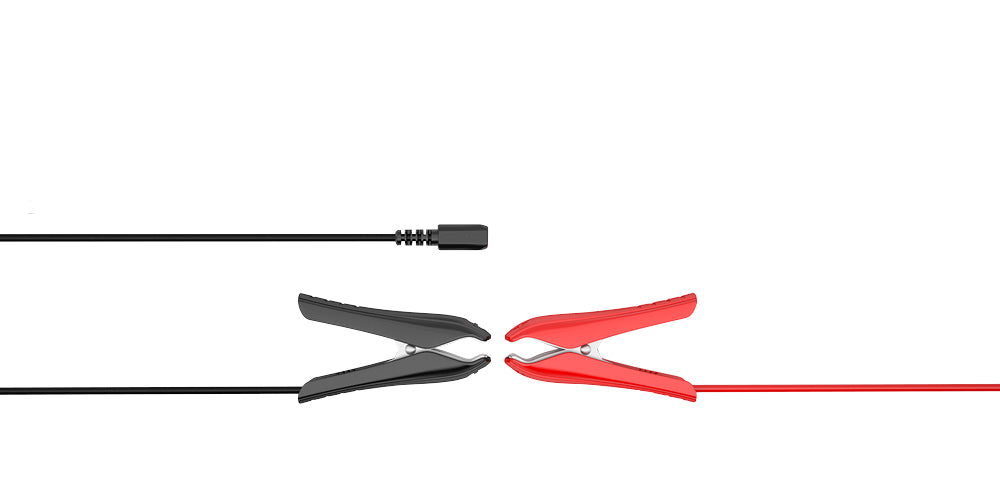

Charging cable length (output): 78.7 in
Manufacturer Warranty: 2 years

*) Back current drain is the current that drains the battery if the charger is not connected to the power outlet. CTEK chargers have a very low back current.

**) The quality of the charging voltage and charging current is very important. A high current ripple heats up the battery which has an aging effect on the positive electrode. High voltage ripple could harm other equipment that is connected to the battery. CTEK battery chargers produce very clean voltage and current with low ripple.
