CTEK

CTEK PRO25SE NA

SKU: 40-327
$399.00

Product details

  • SKU 40-327
Description

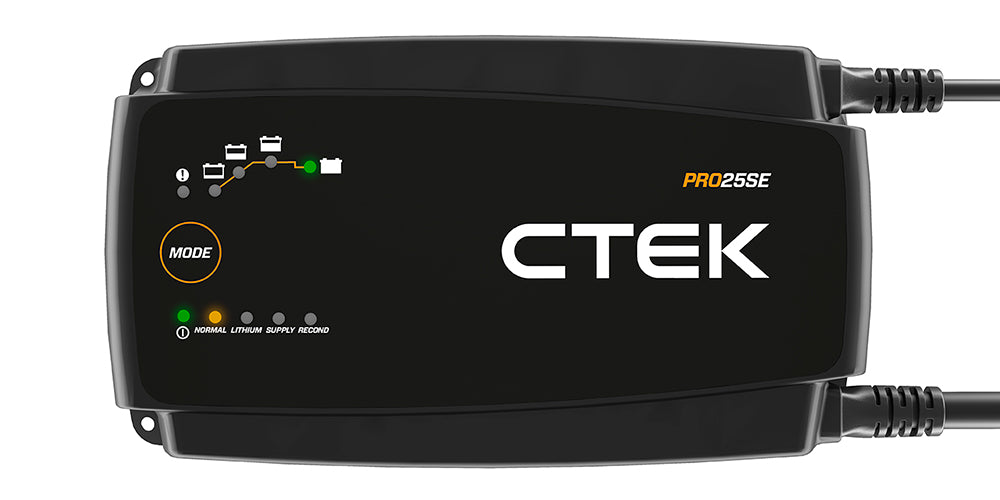

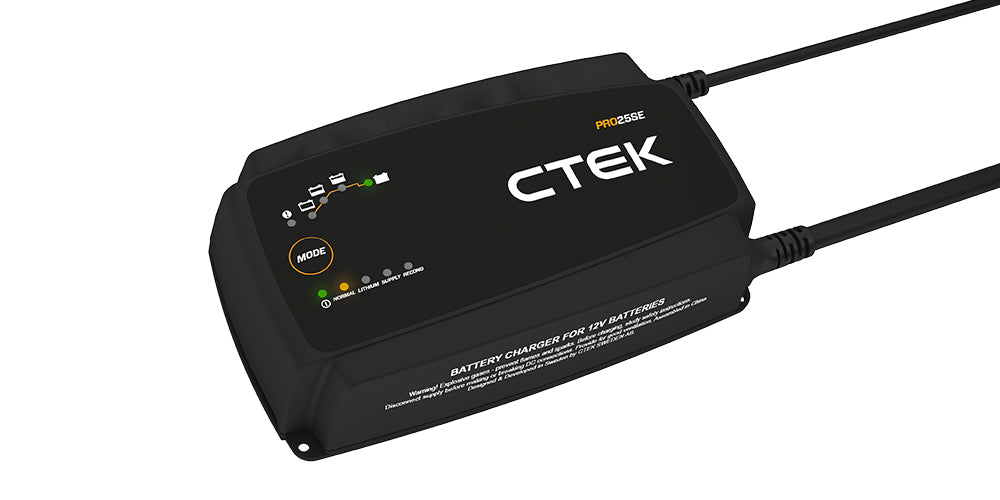

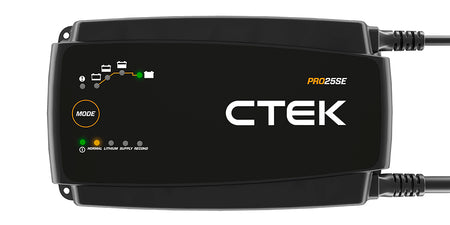

The PRO25SE is an innovative, versatile and highly efficient 22A battery charger and power supply. Supplied with 236 Inch charging cables, you can install the unit on ramp-posts or in work bays. Combining power & advanced technology with safety and compatibility to work with any 12V vehicle battery, including lithium*, it’s the perfect solution for battery charging in the professional workshop. *) 12V lithium batteries (LiFePO4, Li-Fe, Li-iron, LFP).

Description

Advanced technology will ensure that a safe, fast charge is delivered to exactly meet the needs of the individual battery. The PRO25SE has a dedicated leadacid battery reconditioning programme to restore battery life & recondition flat batteries. SUPPLY mode will support the battery during diagnostic or fault finding work. It has low voltage & current ripple, so it’s safe for the battery & the vehicle’s delicate electronic systems. Fully automatic & easy to use, it’s also very simple to connect, spark proof and reverse-polarity protected to protect the user & also the battery. The PRO25SE is designed to ensure easy handling in both the workshop & the showroom. Whilst it’s lightweight & portable, the rugged, impact-resistant casing means it can also handle the toughest workshop environment. *) 12V lithium batteries (LiFePO4, Li-Fe, Li-iron, LFP).

Features

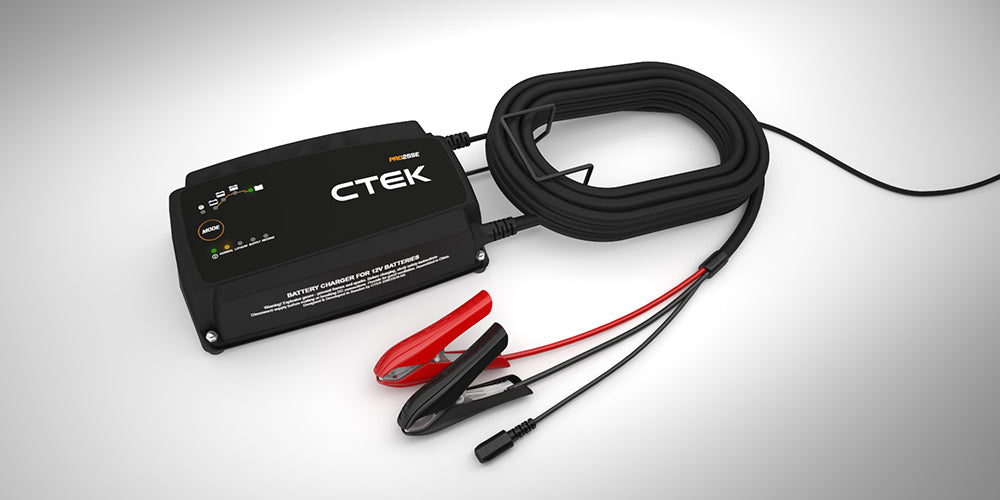

  • The PRO25SE comes with 19.6 ft. charging cables, wall hanger, and bracket

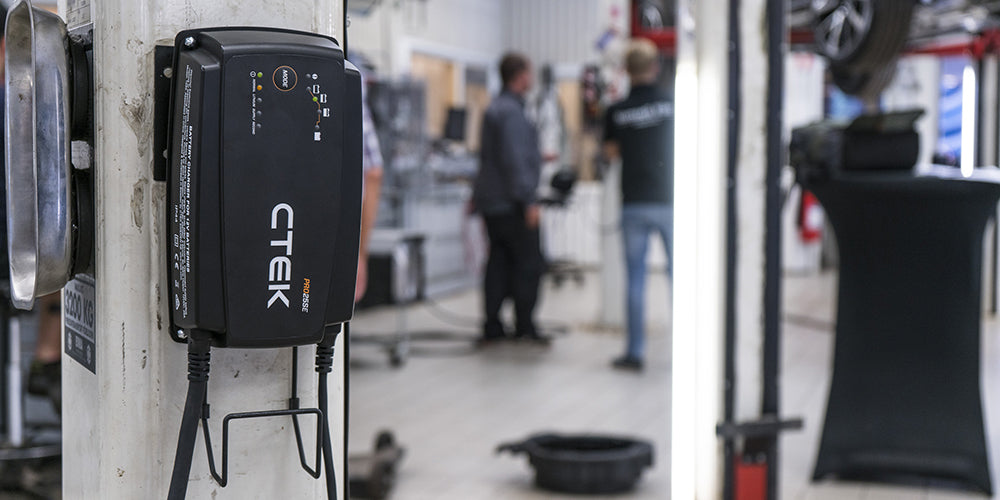

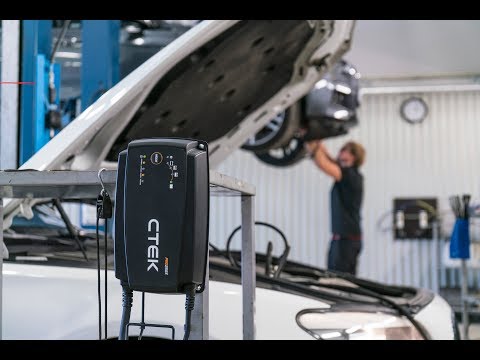

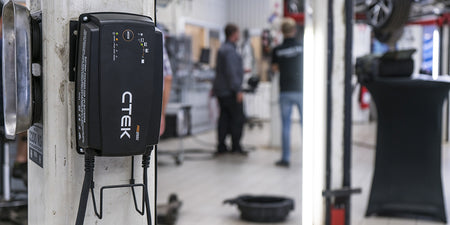

  • Mounting points within the casing for permanent installation on-ramp posts or in work bays
  • Battery types 12V: WET, EFB, MF, Ca/Ca, AGM, GEL, LiFePO4
  • Compatible with batteries from 40 Ah to 500 Ah (30 Ah to 450 Ah lithium - 12V lithium batteries (LiFePO4, Li-Fe, Li-iron, LFP).
  • SUPPLY mode to support the battery during diagnostic or fault-finding work.
  • Dedicated lithium (12V lithium batteries (LiFePO4, Li-Fe, Li-iron, LFP) mode
  • Integrated safety features, it’s safe for the battery & the vehicle.
  • Built-in temperature sensor to achieve maximum charge levels.
  • Fully automatic and easy to use. Simple to connect, spark-proof, and reverse-polarity protected.
  • Dedicated lead-acid reconditioning program to restore battery life and recondition flat batteries.
  • Input voltage is 110-120 VAC
  • Lightweight & highly portable
  • Tough & robust
  • 2-year warranty

Technical data

Charging category: AC charging
Input: 100-120 VAC, 50–60 Hz, 4.0 A
Output: 22 A, 12 V
Battery chemistry: Lead acid; Lithium-ion
Battery types: 12 V:; WET; MF; Ca/Ca; AGM; EFB; GEL; LiFePO₄
Battery capacity: 40–500 Ah, lead-acid battery types. 30–450 Ah, LiFePO₄.
Battery capacity CEC-400: 150-400 Ah
Back current drain*: Less than 2.3 Ah/month
Battery voltage: 12 V
Ambient operating temperature: -4 °F to +122 °F
Cooling: Fan
Start voltage: 2.0 V lead-acid battery types 8.0 V LiFePO₄
Ripple**: Less than 4 %
Temperature compensation: External charge voltage temperature compensation sensor
Degree of protection: IP44
Dimensions (L x W x H): 9.3 x 5.1 x 2.6 in
Cable area: 5.3 mm2
Net weight (unit with cables): 7.1 lbs
Gross weight (unit in box): 9.0 lbs

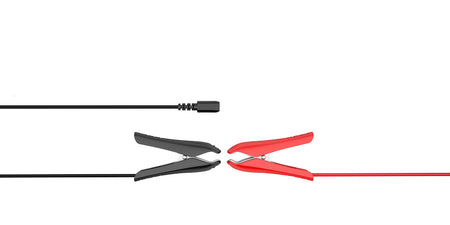

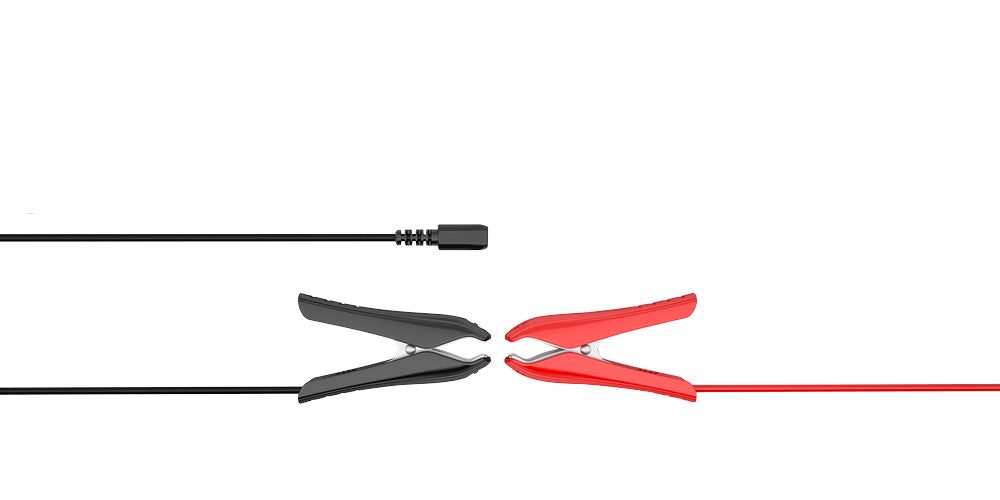

Charging cable length (output): 236 in
Manufacturer Warranty: 2 years


*) Back current drain is the current that drains the battery if the charger is not connected to the power outlet. CTEK chargers have a very low back current.

**) The quality of the charging voltage and charging current is very important. A high current ripple heats up the battery which has an aging effect on the positive electrode. High voltage ripple could harm other equipment that is connected to the battery. CTEK battery chargers produce very clean voltage and current with low ripple.

CTEK issues a limited warranty to the original purchaser of the product. Depending on the product, the limited warranty period will vary. The limited warranty is not transferable. The warranty applies to manufacturing faults and material defects. The warranty is void if the product has been handled carelessly or repaired by anyone other than CTEK or its authorized representatives. CTEK makes no warranty other than this limited warranty and is not liable for any other costs other than those mentioned above, i.e. no consequential damages. Moreover, CTEK is not obligated to any other warranty other than this warranty.
